From Flat Sketches to Algorithmic Shoe Design
Algorithmic shoe design is the use of computational geometry, software-driven modelling, and simulation to generate sneaker structures that respond precisely to performance, comfort, and aesthetic requirements instead of relying on manual pattern-making alone. For years, the future of sneakers was treated as a style exercise: metallic finishes, sci‑fi lines, but familiar production. Now digital footwear manufacturing is shifting the focus from surface to structure. Designers write rules, not panels, and algorithms determine where material should be dense, soft, or hollow. Combined with 3D printing, this turns the sneaker from a layered assembly into a continuous object tuned for cushioning, flexibility, and ventilation. The result is a new category of 3D printed sneakers that promise faster iteration, lower waste, and customizable athletic shoes shaped by data as much as by drawing.
Nike x Zellerfeld: Air Max Rewritten by Software

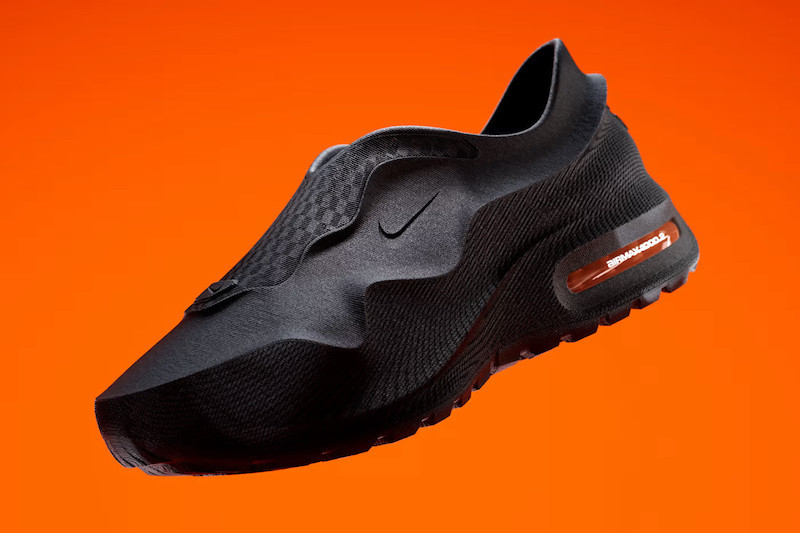

Nike’s AIRMAX 1000.2 with Zellerfeld shows how far algorithmic design can push a classic. Inspired by the original Air Max 1, the shoe keeps the spirit of visible tech but trades stitched panels and glued tooling for a single 3D‑printed form. Traditional manufacturing steps disappear: there is no stitching, no layered assembly, and no conventional lacing. Instead, computational design defines the wavy upper, sculpted tooling, and organic surfaces that only additive manufacturing can produce. The laceless, slip‑on construction turns the shoe into one continuous, responsive shell, hinting at new possibilities for fit and everyday ease. The Black/Hyper Crimson colorway amplifies the complex geometry, tracing layers like a live pressure map and making the structure itself the visual story. Rather than pretending to be made conventionally, the AIRMAX 1000.2 invites wearers to see and feel the logic of its algorithms.
KIPNEXT 3D and MJF Midsole Technology Enter the Mainstream
Decathlon’s KIPNEXT 3D points to how 3D printed sneakers can scale into mainstream running. Developed by Kiprun, the shoe combines a knit upper with a bold red lattice midsole printed using HP’s Multi Jet Fusion, often shortened to MJF midsole technology. The midsole uses a proprietary TPA material and a hollow lattice tuned for rebound and cushioning. According to Kiprun, the KIPNEXT 3D offers 75% energy return, while many EVA foam midsoles sit between 50% and 65%. Instead of one uniform block of foam, the variable‑density lattice can be adjusted to match a runner’s unique stride pattern, tightening or opening cells where more support or softness is needed. Developed in under six months at Kiprun’s Innovation Powerhouse in Shenzhen with support from design studio Something Added, the project shows how digital footwear manufacturing can cut development times while raising performance ambitions.
Why Algorithms Beat Traditional Methods for Performance Tuning
What links Nike’s fully printed AIRMAX 1000.2 and Kiprun’s hybrid KIPNEXT 3D is not a single material, but a method. Algorithmic shoe design allows engineers to treat the midsole and upper as fields of data instead of solid blocks. They can vary stiffness millimetre by millimetre, simulate how a lattice will deform under load, and change patterns in software without rebuilding physical molds. This makes it possible to aim for specific metrics, like targeted energy return zones or controlled torsion, that are hard to hit with cut‑and‑sew parts. MJF midsole technology and similar processes also support internal geometries that traditional tooling cannot create. As brands feed motion capture and pressure data into their models, personalized lattices become realistic, opening the door to customizable athletic shoes tuned to individual gait, weight, and training goals.
Digital Footwear Manufacturing and the Path to Personalization
Fully 3D printed sneakers like the AIRMAX 1000.2 hint at a future where many legacy steps disappear: no separate outsole, insole, or stitched upper, and fewer materials to source, cut, and glue. Hybrid designs like the KIPNEXT 3D show another path, using digital manufacturing where it adds the most value while keeping proven textiles and laces. In both cases, additive processes reduce manufacturing complexity and make rapid iteration easier: designers can print new lattice configurations overnight instead of waiting for tooling. That speed matters for performance validation and for limited runs tuned to specific communities or athletes. Over time, as scanning and customization tools spread, the same pipelines could enable on‑demand, customizable athletic shoes with fit and cushioning mapped to each wearer. The shoe becomes less a mass product and more a personal interface between body, data, and ground.
