What Makes the X870E Aorus Infinity Next Different

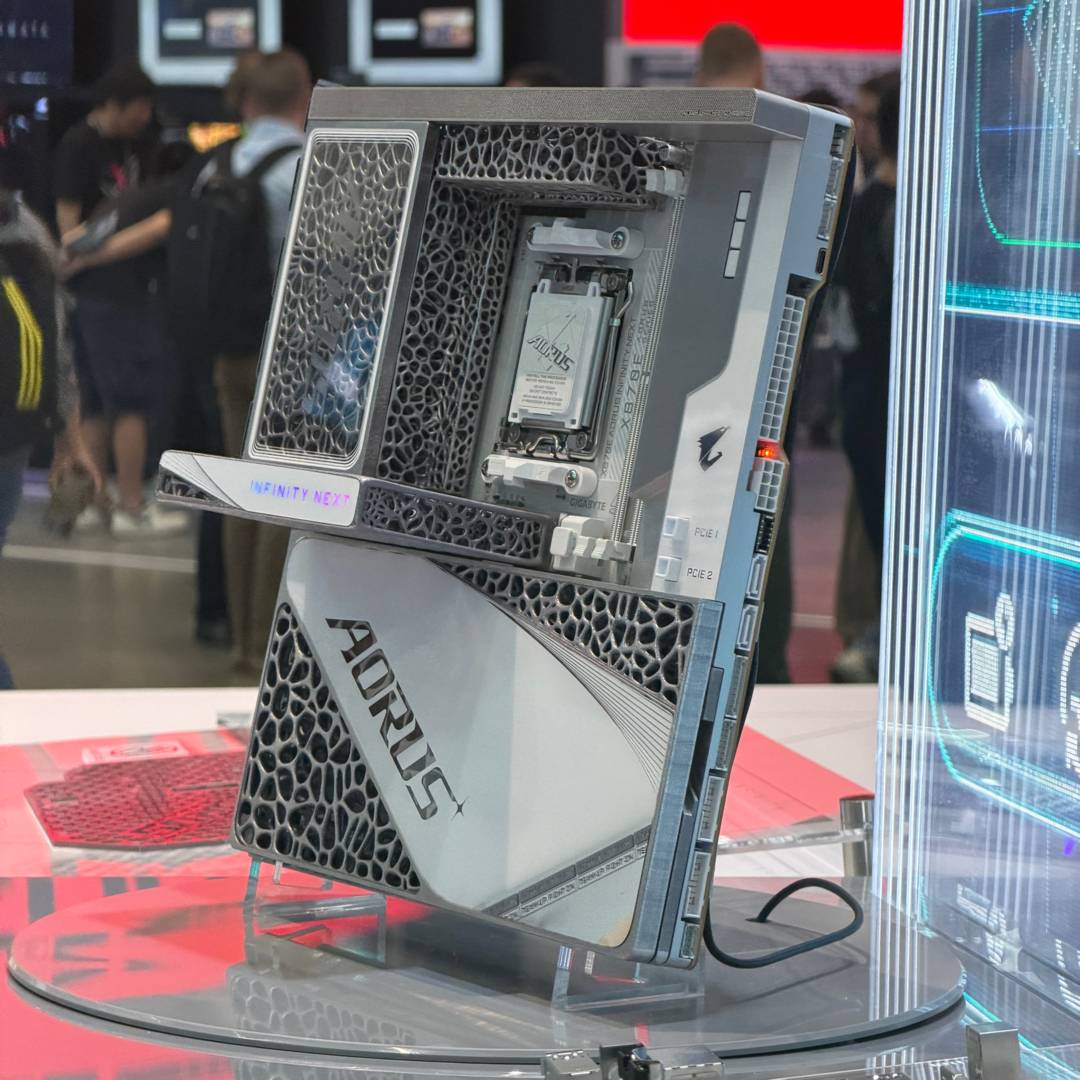

Gigabyte’s X870E Aorus Infinity Next is a concept 3D printed motherboard that applies aerospace-style metal additive manufacturing and AI-optimised structures to improve cooling, durability, and visual design for high-end gaming and professional PCs. Shown at Computex as part of Gigabyte’s Infinity hardware anniversary line-up, the board stands apart from the already high-end X870 Aorus Infinity by replacing conventional flat heatsinks with sculpted, lattice-like metal. Gigabyte uses the same 3D metal printing process seen in some rocket and aerospace parts, producing an organic, almost Giger-like shell that covers both front and back. Underneath, the platform targets flagship CPUs and high-speed DDR5, aligning with the wider Infinity Series focus on memory performance and thermal control. While still a concept with no retail date, it signals where enthusiast motherboards may be heading as 3D printed motherboard designs move from experimental showpieces toward future production candidates.
Aerospace-Inspired 3D Metal Printing and AI Gyroid Design

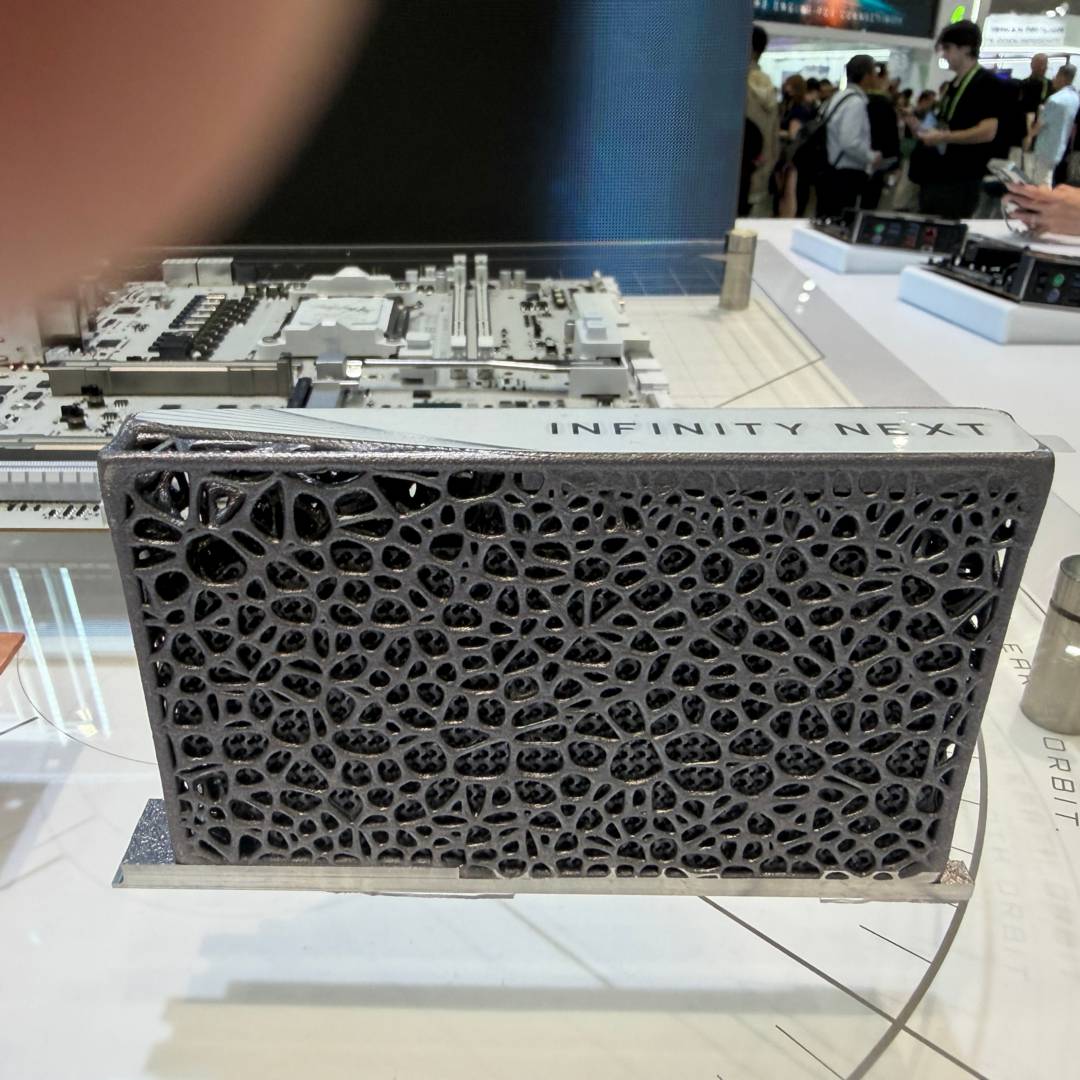

The X870E Aorus Infinity Next leans on aerospace engineering PC techniques, especially 3D metal printing, to create structures that standard tooling cannot form. Gigabyte prints complex shrouds and backplates in metal, yet the material reportedly feels closer to plastic, suggesting a lightweight alloy tuned for PC use. The standout feature is an AI Gyroid design: an internal sponge-like lattice that supports itself while maximising airflow channels and surface area. According to Club386, this approach gives “a 44% higher cooling surface area on the M.2 heatsink, as well as up to 45% increased airflow area on the honeycomb PCB thermal plate.” These figures highlight why additive manufacturing hardware is attractive; designers can optimise weight, stiffness, and thermal performance in one shot instead of stacking separate plates and fins around layout constraints set by milling or stamping.
Thermal Engineering: From Vapour Chambers to Space-Grade Power
Gigabyte treats the X870E Aorus Infinity Next as a platform to test extreme thermal ideas. Beyond the printed lattice, the motherboard debuts what Gigabyte describes as the world’s first 3D-printed metal vapour chamber. Built with an omnidirectional fin wick, it is rated for up to 100W heat dissipation, an eye-catching claim for a component integrated into the board rather than a separate cooler. The Gyroid metal shrouds wrap around hotspots such as the chipset, VRMs, and especially the primary M.2 SSD slot, using their expanded surface and airflow area to moderate temperatures. On the power delivery side, Gigabyte’s Infinity range already includes space-grade Quad OptiMOS phases on the X870E Aorus Infinity Next to resist thermal throttling under heavy workloads. Together, these features make the board a test bed for passive or near-passive cooling concepts that could later filter down into more accessible designs.
From PCBs to Additive Manufacturing Hardware
Traditional motherboards rely on flat PCBs with bolted-on heatsinks, but the X870E Aorus Infinity Next hints at a shift toward additive manufacturing hardware. The board still uses a PCB for signal routing, yet much of its identity comes from 3D-printed metal that envelops and reinforces critical zones. This opens the door to structural heatsinks that become part of the chassis, not mere accessories. Combined with AI-guided geometry, engineers can sculpt airflow paths around SSDs, VRMs, and chipsets without the tooling limits of cast or machined parts. While this X870E is currently a concept, Gigabyte’s wider Infinity Series—spanning high-speed X870 boards, AI-focused workstations, liquid coolers, and OLED displays—shows a company experimenting across the stack. Lessons from this aerospace-inspired 3D printed motherboard could inform future production boards that integrate lighter, stronger, and more thermally efficient metal structures as standard.
Who the X870E Aorus Infinity Next Is For
Even as a concept, the X870E Aorus Infinity Next signals its intended audience: enthusiasts and professional builders who value cutting-edge engineering and distinctive aesthetics. The design aligns with the Infinity family’s focus on extreme DDR5 speeds, improved response times through modes like X3D Turbo, and cableless or stealth cable layouts elsewhere in Gigabyte’s line-up. In practice, a future retail derivative would appeal to creators running heavy rendering workloads, local AI projects, or high-refresh gaming, where stable thermals and durable construction matter. It also speaks to system integrators seeking to differentiate premium builds with an aerospace engineering PC theme. For now, Gigabyte says there is no retail date, but the X870E Aorus Infinity Next gives a clear preview of how 3D printing, AI optimisation, and unconventional materials may reshape high-end motherboard design over the coming hardware generations.
