What Google Released and Why It Matters for Makers

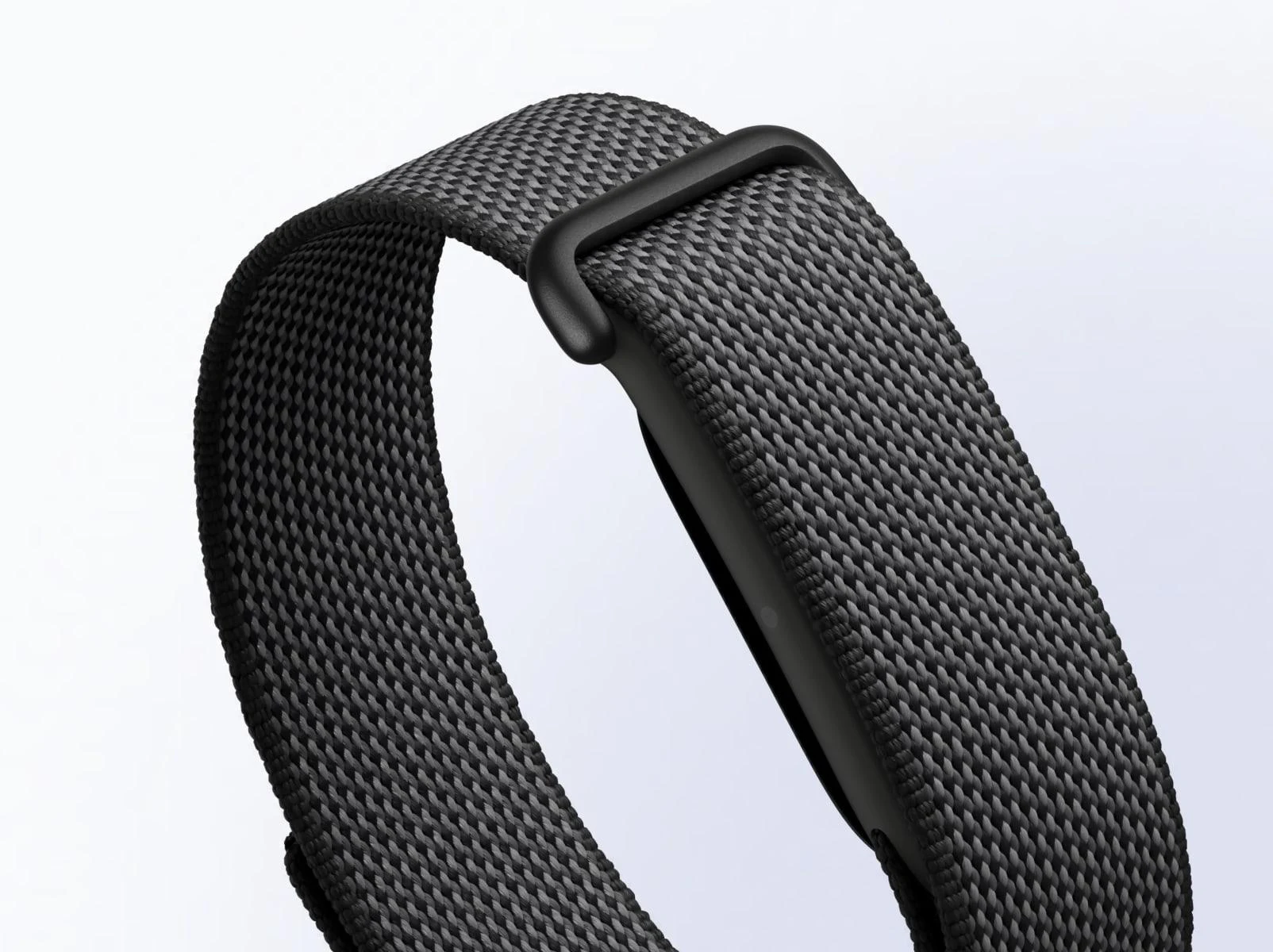

3D printing Fitbit Air bands means using Google’s official design guidelines and CAD drawings to create personalized fitness tracker accessories that safely fit the sensor module while reflecting each wearer’s unique style and daily use preferences. Google has published detailed 2D CAD files, measurements, and mechanical tolerances for the Fitbit Air’s tiny sensor “pebble,” inviting creators, brands, and hobbyists to design compatible straps and housings. According to Digital Trends, the Fitbit Air’s hardware is built around a lightweight health-sensing module that snaps into an outer band, turning the band into the visual star of the device. This makes the Fitbit Air perfect for DIY customization, from minimalist workout straps to expressive everyday bands. With these files, anyone with design software and a 3D printer can begin Fitbit Air DIY customization instead of waiting for official accessories.
Getting the Official CAD Files and Understanding the Rules
To 3D print Fitbit Air bands that work reliably, start by downloading Google’s public band design guidelines and 2D CAD drawings, which define the pebble’s dimensions, sleeve geometry, and mating forces. Android Police notes that these documents specify attach and detach forces, tolerance margins, and two strict engineering rules: the sensors on the bottom must remain unobstructed, and they must maintain sustained contact pressure with the skin. Those requirements protect heart rate and blood oxygen tracking accuracy. The guidelines also explain the snap‑in retention mechanism so the tracker stays secure during exercise but can be swapped out easily. Before opening CAD software, read the full documentation to understand safe clearances, allowed overhangs, and any restricted zones around the sensor window. Treat these files as your compatibility blueprint: they define the mechanical envelope that every custom Fitbit Air strap must respect.
Designing Custom Fitbit Air Straps That Are Safe and Comfortable
Once you understand the official measurements, you can begin shaping personalized fitness tracker bands around the Fitbit Air pebble. Focus first on comfort and skin safety, then on style. Google highlights that the band must hold the sensor firmly against the wrist without squeezing, so build a secure cradle around the module and use strap geometries that distribute pressure evenly. The documentation recommends skin‑friendly materials and warns against options that trap sweat or contain known irritants such as certain nickel alloys or natural latex proteins. Even if your main structure is 3D printed, consider adding soft liners, breathable cutouts, or fabric overlays in high‑contact areas. This is where custom Fitbit Air straps become exciting: you can design low‑profile workout bands, dressier housings for the office, or experimental shapes that stand out while still keeping the pebble’s sensor area completely clear.
Choosing Materials and 3D‑Printing Settings for Your First Band
For a successful first Fitbit Air DIY customization project, choose materials that balance flexibility, strength, and skin comfort. Many makers will start with flexible filaments for the main band and more rigid plastics for the pebble frame so the snap‑in mechanism feels precise. Keep layer height reasonably fine to capture the tight tolerances around the connector slots and latch features defined in Google’s CAD drawings. Orientation matters: print the snap features and sleeves so stress runs along, not across, layer lines to reduce the risk of cracking during attachment and removal. After printing, test attach and detach forces gradually, checking that the pebble seats fully and cannot pop out during a stretch or shake. Sand any sharp edges and confirm there’s no flashing around the sensor window, which must remain unobstructed for reliable optical readings.
Exploring Advanced Mods and the Emerging Accessory Ecosystem
Once you have a basic band working, you can explore more creative Fitbit Air DIY customization ideas. The pebble‑and‑sleeve design makes it possible to create modular systems with interchangeable frames, sport loops, or hybrid bands that mix 3D‑printed structures with textiles or leather. Digital Trends notes that Google is encouraging brands to join its Made for Google program, enabling certified accessories with official “compatible with Google Fitbit Air” branding. That signals room for a broader ecosystem where independent designers offer niche, experimental, or fashion‑focused bands alongside home‑grown maker projects. Users are already mixing custom housings with different watch and strap combinations, treating the Fitbit Air as a health core that slots into whatever look they want. Start simple, share your designs, and iterate based on comfort, durability, and feedback from actual daily wear.
