What a Gaming Bottleneck Is and Why It Changes Constantly
A gaming performance bottleneck is a shifting condition where either your CPU or GPU becomes the slowest link in the chain, limiting how many frames your system can deliver regardless of how powerful the other components are. In PC gaming, a CPU bottleneck diagnosis means your processor cannot prepare and send work to the graphics card fast enough, so the GPU waits idly and stays underutilized. GPU bottleneck detection, on the other hand, describes a state where the graphics card cannot render frames as quickly as the CPU produces them, so frame rate is capped by GPU throughput. This balance is not fixed: it changes with each game, resolution, graphic preset, and even specific scenes, which is why your PC can be GPU-bound in a cinematic single-player title and CPU-bound in a crowded multiplayer match minutes later.
Step 1: Use Overlays to Spot Obvious CPU or GPU Limits

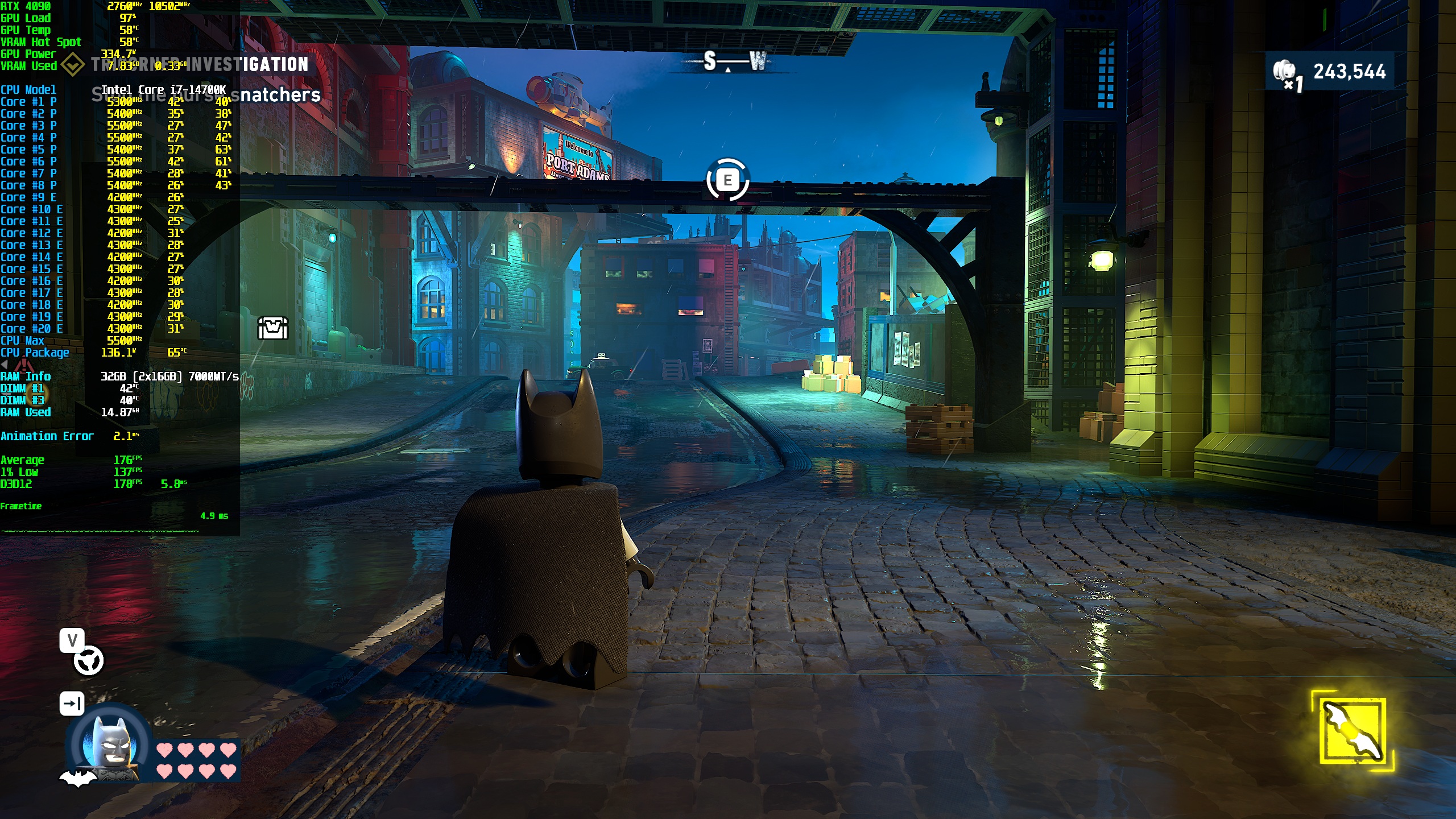

Start your CPU bottleneck diagnosis with a real-time overlay. Tools like MSI Afterburner with RTSS, CapFrameX, vendor software such as the NVIDIA App or AMD Adrenalin, and PC bottleneck tools based on Intel PresentMon can all show key metrics while you play. Track GPU usage, power draw, clocks, temperature, and VRAM, plus CPU total and per-core usage, power, RAM use, FPS, and frametimes. High GPU usage pinned near 95% with stable clocks and rising FPS when you lower resolution or graphics settings usually means a healthy GPU bottleneck, which is ideal in graphically heavy games. If GPU usage sits well below 90%, power is low, and changing resolution hardly affects performance, your platform is likely CPU-limited. Remember, the CPU does not need to show 100% usage to be the limiting factor, especially on many-core processors where one heavy thread can hold back the whole frame pipeline.
Step 2: Analyze Captures with CapFrameX and PresentMon
Once overlays hint at a problem, move to deeper GPU bottleneck detection with CapFrameX and PresentMon. Both tools capture detailed frametime data and present graphs instead of simple averages. According to Wccftech, using CapFrameX with RTSS overlays lets you record sessions, then inspect average FPS, 1% and 0.1% lows, and frametime spikes to see where the game stutters. PresentMon adds an essential metric called GPU Busy, which shows how long the GPU worked on each frame. If GPU Busy closely matches total frametime, your system is GPU-bound. If frametime is much higher than GPU Busy, something else, usually the CPU or memory subsystem, is holding things up. These traces also reveal how different scenes load your hardware, such as quiet corridors being GPU-limited while NPC-heavy cities swing the bottleneck toward the CPU.
Step 3: Match Symptoms to CPU or GPU Bottlenecks
With data captured, map the symptoms to the component that is limiting your gaming performance. In GPU-bound cases, you see high, steady GPU usage, high GPU power, and FPS that scales when you drop resolution or enable upscaling. Frame pacing is usually smooth unless VRAM or thermal limits appear. In CPU-bound scenarios, GPU usage floats well below peak while one or a few CPU threads show high activity, and lowering visual settings barely changes FPS. Multiplayer games and simulation-heavy titles often expose this, as the CPU spends more time on physics, AI, and game logic. CNET compares this to a restaurant: the CPU is the waiter taking orders, the GPU is the cook. If the waiter is slow, orders pile up and the cooks wait around. Upgrading to a faster cook does little when the wait staff is already overwhelmed.
Step 4: Fix Bottlenecks and Avoid Wasted Upgrades
Once you know whether the CPU or GPU is limiting your system, you can fix performance without wasting money on the wrong part. If you are GPU-limited, lowering demanding settings, using upscalers, or upgrading your graphics card will boost frame rates. If you are CPU-bound, aim for fewer, better-quality frames with frame rate caps, lower CPU-heavy options like crowd density, or even a CPU and motherboard platform upgrade. According to CNET, swapping to a powerful new GPU while keeping an older CPU can leave the GPU idling, delivering only modest gains because the processor cannot keep up. Understanding bottlenecks helps you balance CPU and GPU spend for your target resolution and refresh rate instead of overbuilding one side. Use PC bottleneck tools regularly when upgrading parts so each change keeps the system in balance for your favorite games.
