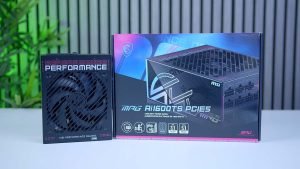

What the MSI MPG Ai1600TS PCIe5 Is and Who It’s For
The MSI MPG Ai1600TS PCIe5 is a fully modular 1600W ATX 3.1 power supply designed for high-end gaming PCs and workstations that need PCIe 5.1, modern 12V-2×6 GPU connectors, and Titanium-level efficiency without the usual flagship badge or price. In MSI’s stack it sits in the MPG series, but its specification rivals or surpasses many halo units, including MSI’s own MEG Ai1600T. With 1600W of capacity, dual PCIe 5.1 12V-2×6 cables and extensive EPS and PCIe 6+2-pin support, it targets enthusiasts pairing parts like an RTX 5090 with a power-hungry overclockable CPU, plus multiple drives and accessories. If you are planning a 4K gaming rig, an extreme overclocking setup, or a multi-GPU workstation and want a high-performance power supply that still feels attainable, the Ai1600TS has been built with that use case front and center.
Design, Build Quality and Acoustic Behaviour
MSI gives the MPG Ai1600TS a design that balances clean branding with enthusiast flair. The chassis carries the familiar MPG dragon liveries and a reflective gradient side logo, while red-and-white performance text ties it visually to the rest of the MPG line. At 150 x 190 x 86 mm it is larger and heavier than average, so you should confirm case clearance, but most modern mid‑tower and full‑tower cases will be fine. Internally, MSI uses server‑grade materials that help cut heat waste by up to around 10%, supporting both efficiency and long‑term reliability. Acoustics are another strong point. Cybenetics awards the unit an A+ rating for low noise, helped by a fluid dynamic bearing fan, a “Night sound level” tuning philosophy and Zero Fan mode, which turns the fan off at low load so light desktop or media use remains near‑silent.
1600W Capacity, PCIe5 Readiness and Real-World Headroom
On paper, the MSI MPG Ai1600TS review reads like a wish list for high-end builders: 1600W total output, ATX 3.1 and PCIe 5.1 support, dual 12V-2×6 GPU connectors, and seven additional PCIe 6+2-pin outputs. Each PCIe 5.1 cable can deliver up to 600W to compatible NVIDIA GPUs, giving huge overhead for next‑generation cards. MSI’s own compatibility data shows that even with an RTX 5090 rated at 575W, there is still roughly 875W of capacity in reserve for the CPU and the rest of the system. That makes this 1600W PSU ideal for stacked scenarios: RTX 50‑series GPUs, heavy overclocks on high‑core‑count CPUs, external capture or storage cards, and dense storage arrays. While this much power is overkill for mainstream builds, it creates comfortable thermal and electrical headroom for long gaming or rendering sessions without flirting with the PSU’s limits.
Efficiency, Protection Features and Long-Term Value
Where the Ai1600TS separates itself from many 1600W PSUs is efficiency and safety. It carries both 80 Plus Titanium and PPLP Titanium ratings, alongside a Cybenetics Platinum efficiency grade, so it wastes less power as heat under heavy load and keeps long-session operating costs lower than cheaper units of similar wattage. According to Geekawhat’s review, “Equipped with the hardware to handle high-power excursions, offering 1600W of juice for your build and an 80 Plus Titanium efficiency rating, this PSU is an enthusiast’s dream.” MSI also adds GPU Safeguard+, which continuously monitors the current on both 12V-2×6 connectors and issues audible beeps, on‑screen alerts and, if needed, a forced black‑screen shutdown when unsafe surges or imbalances appear. Fan Safeguard performs a similar role for the PSU fan, warning immediately if it fails so you can prevent overheating.
Cabling, Everyday Experience and Final Verdict
As a fully modular high-performance power supply, the MPG Ai1600TS ships with a wide cable set: ATX 24‑pin, multiple EPS 8‑pin and 4+4‑pin for hungry CPUs, two PCIe 5.1 (12V‑2×6, 16‑pin) GPU leads, seven PCIe 6+2‑pin connectors, plus SATA and Molex runs for drives and accessories. Embossed jacket cabling improves flexibility and makes routing through tight grommets and channels easier. The dual‑colour yellow‑and‑black 12V‑2×6 ends also offer a visual confirmation that connectors are seated correctly. In day‑to‑day use, Zero Fan mode, quiet operation and ample headroom make the unit feel unstrained even under gaming or rendering loads. The main downsides are its sheer size and that 1600W is more than most systems will ever need. For anyone building around an RTX 5090 or similar flagship GPU, though, this PCIe5 power supply delivers top‑tier capability without needing a flagship label.
