What PCIe Gen6 SSD Controllers Change for AI Storage
A PCIe Gen6 controller is a next-generation SSD control chip built for the PCIe 6.0 x4 interface, delivering about twice the throughput of PCIe 5.0 while improving power efficiency, capacity scaling, and random I/O for AI inference, data analytics, and dense data center storage. This new class of controllers matters because AI storage technology is now limited less by raw CPU or GPU performance and more by how fast models and datasets can move between compute and flash. With PCIe Gen6, SSD speeds of 28 GB/s move from lab experiments toward commercial roadmaps, supported by NVMe 2.3 and faster NAND at up to 4800 MT/s. Vendors are pairing these controllers with E1.S and E3.S form factors that fit modern servers, signaling a broad shift beyond today’s PCIe Gen5 dominance toward higher-bandwidth, lower-latency AI storage stacks.
Phison PS5303-X3: 28 GB/s at 7 W and an Ecosystem Play

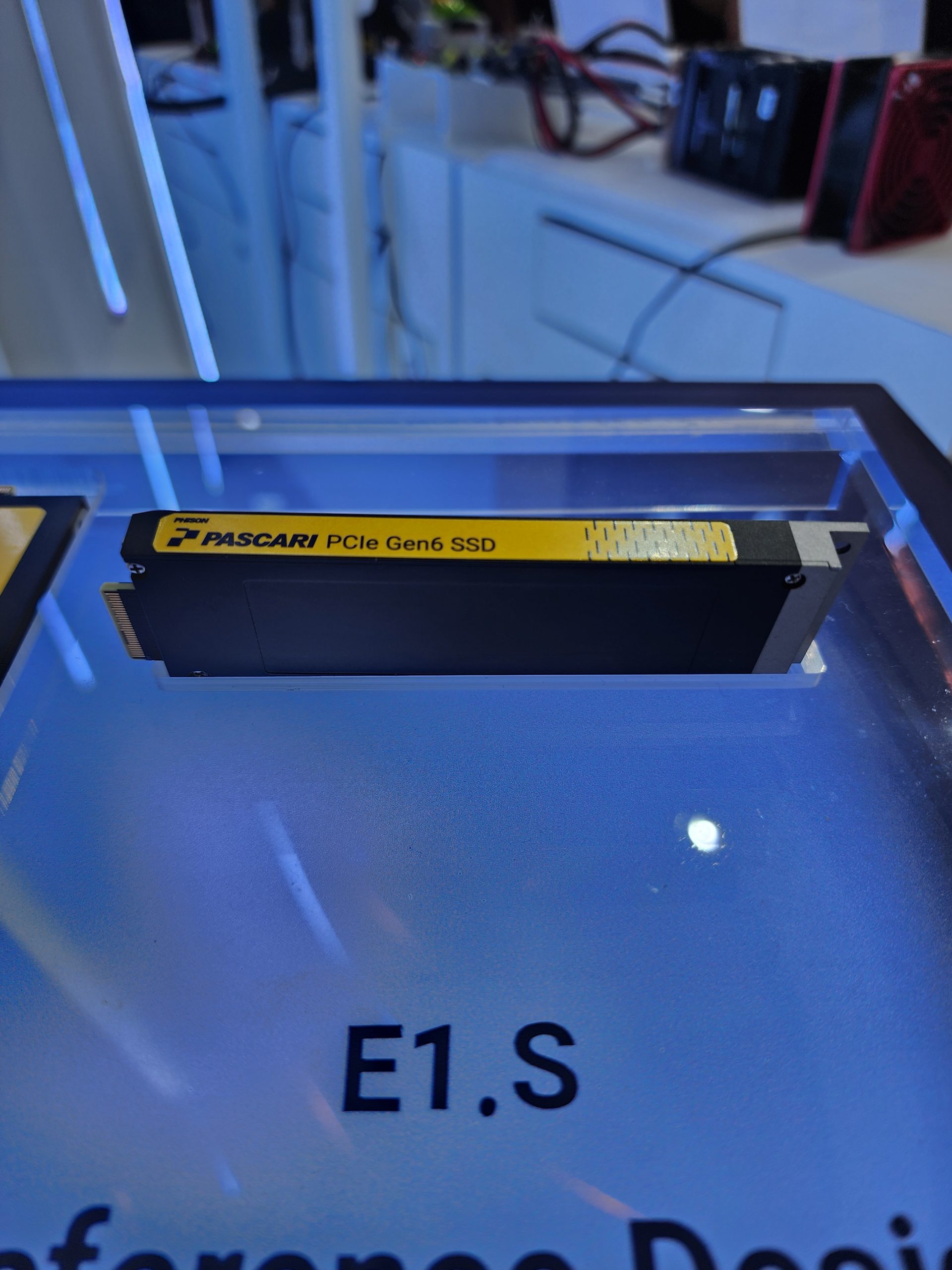

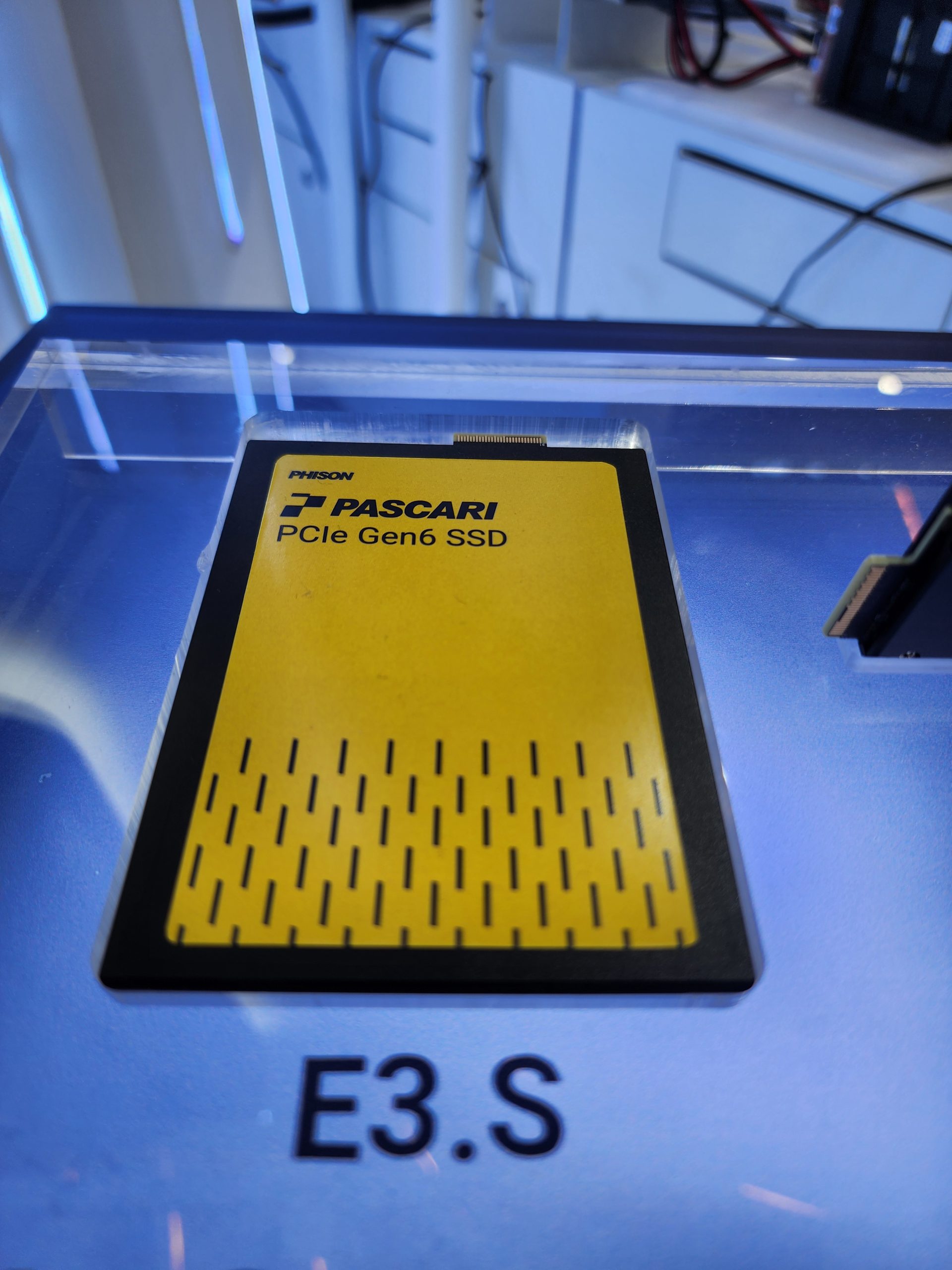

Phison’s PS5303-X3 PCIe Gen6 controller targets enterprise SSDs that can double PCIe Gen5 throughput without blowing up the power budget. The controller uses a PCIe Gen6x4 interface with NVMe 2.3 and aims for up to 28 GB/s sequential read and write speeds plus around 6.8 million random IOPS, while supporting capacities up to 2 petabytes per SSD. Phison says the design reaches about 4 GB/s per watt, meaning “7W for the fastest Gen6 SSDs coming soon from Phison.” That efficiency is key for dense AI inference servers that struggle with heat and power headroom. The PS5303-X3 appears in Pascari E3.S and E1.S drives and is backed by a full PCIe 6.0 ecosystem, including the PS7261 retimer and PS7161 redriver for PAM4 signaling. Sampling is slated to begin in December, with volume shipments ramping in mid-2027.
InnoGrit IG5686: Massive Capacity and a Gen7 IOPS Ambition
InnoGrit’s Crestone IG5686 PCIe Gen6 controller takes a different angle, emphasizing capacity and long-term AI roadmaps. The PCIe Gen6x4, NVMe 2.3 controller is designed for enterprise, data center, and AI use cases with support for up to 256 TB per SSD, speeds up to 28 GB/s read and 22 GB/s write, and up to 7 million random read and 5 million random write IOPS. It works with SLC, MLC, TLC, QLC NAND and storage-class memory, with NAND speeds reaching 4800 MT/s, and targets E1.S and E3.S form factors. The more aggressive part of InnoGrit’s message is its roadmap: the company expects 25–50 million IOPS from optimized PCIe Gen6/CXL designs by 2027 and up to 100 million IOPS for PCIe Gen7/CXL in 2028 to support AI-native storage architectures and large-scale inference clusters.
From PCIe Gen5 to Gen6: Efficiency and AI Workload Implications
Both Phison and InnoGrit frame PCIe Gen6 as more than a bandwidth bump over Gen5; it is a power and efficiency reset tuned for AI workloads. Current Gen5 client designs from Phison, like the E37T, already show this direction: they deliver up to 14.9 GB/s sequential reads and about 3 million IOPS at around 4.5 W, sometimes under 2.3 W, making them suitable for thin systems and dense racks without active cooling. Gen6 doubles interface throughput while targeting similar or only moderately higher power envelopes, which is crucial when multiple SSDs share a chassis with power-hungry accelerators. For AI inference, higher SSD speeds of 28 GB/s and multi-million IOPS help cut data loading bottlenecks, feed GPUs more consistently, and allow larger models, datasets, and long-context workloads to sit closer to compute.
Gen6 Readiness and the Road to AI-Native Storage

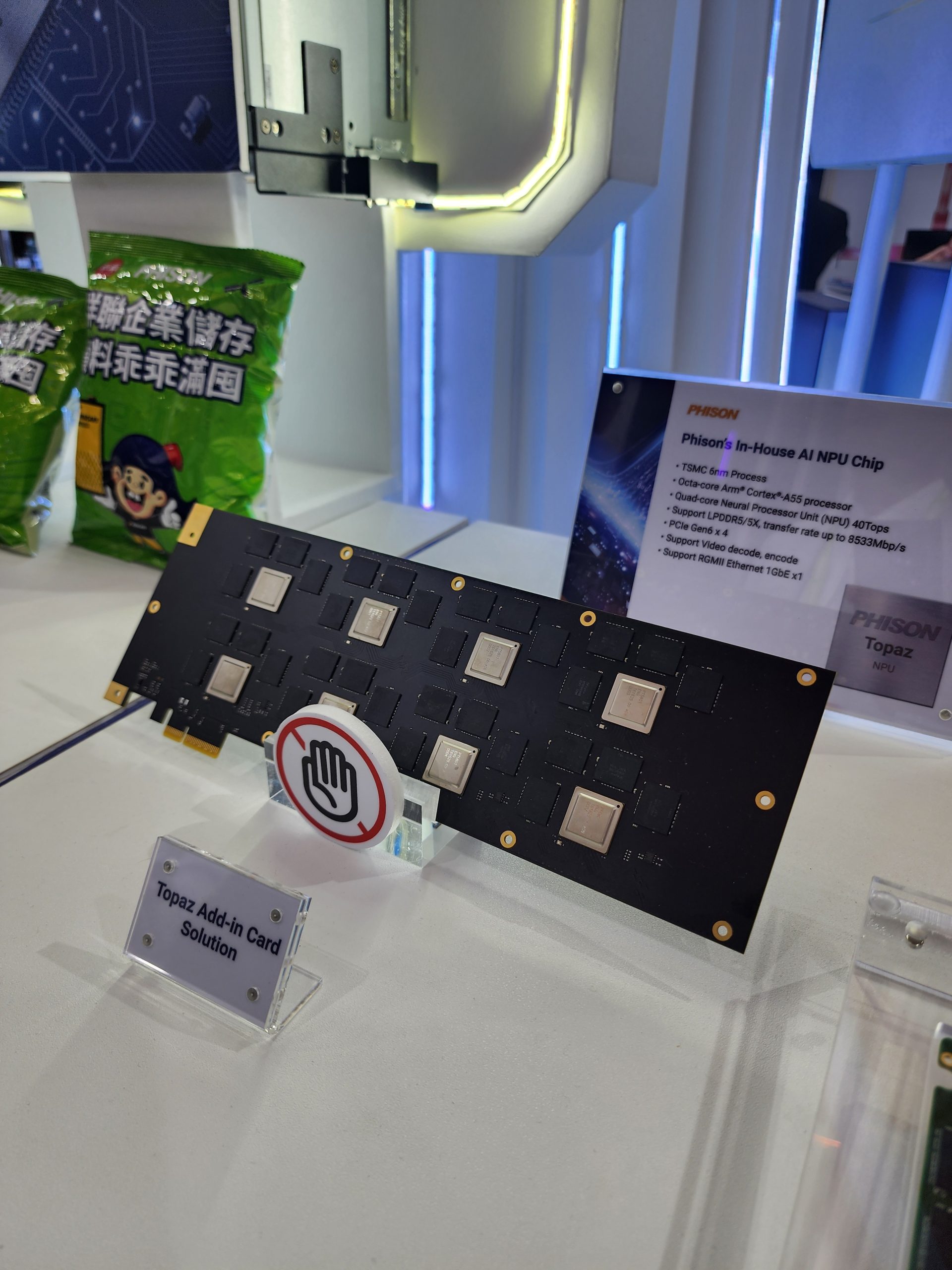

The push by multiple vendors into PCIe Gen6 controller development signals that the industry is preparing for a faster-than-usual transition beyond Gen5 in the enterprise. Phison is not only bringing its PS5303-X3 to reference designs but also building retimers, redrivers, and even a PCIe Gen6 Topaz NPU add-in card, indicating that storage and compute will share a common high-speed fabric. InnoGrit, meanwhile, ties IG5686 to a PCIe Gen6/CXL roadmap that climbs to 100 million IOPS on Gen7. Client platforms will lag; PCIe Gen6 SSDs are not expected to reach mainstream consumer systems before the end of the decade. But in AI-focused data centers, the direction is clear: PCIe Gen6 controllers such as Phison PS5303-X3 and InnoGrit IG5686 are set to underpin AI storage technology that is faster, denser, and more power-efficient than today’s Gen5 deployments.
