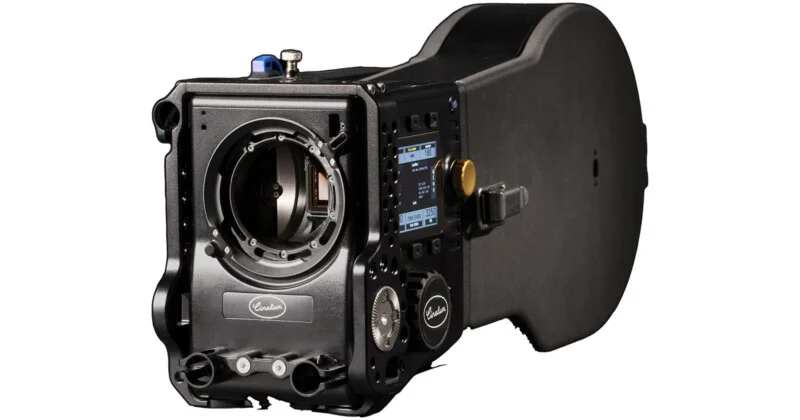

What the Cinelux SIXTEEN Is—and Why It Matters
The Cinelux SIXTEEN is a hybrid Super 16 film camera that records motion picture film and a matching digital video file at the same time, aiming to give filmmakers the classic analog image and a fully modern on‑set and post‑production workflow without forcing a choice between film aesthetics and digital efficiency. Developed by Cinelux Cinema Tools as part of its Project SIXTEEN concept, the camera is described as a film camera first, with digital added to support production rather than replace celluloid. A Super 16 film gate sits alongside a 3K Super 16–format digital cinema sensor, which records to CFexpress Type B media and is planned to support formats like ProRes 4444, CinemaDNG, and Cinelux’s own Lux RAW. For independent filmmaking teams, this hybrid film digital design suggests a way to enjoy film’s texture while staying compatible with fast, file‑based pipelines.
How Simultaneous Capture Works on a Super 16 Film Camera
Inside the Cinelux SIXTEEN, each revolution of the shutter produces two exposures from the same lens image: one on Super 16 film stock and one on the digital sensor. Instead of a traditional ground glass and optical relay, the camera routes the image that would normally go to the viewfinder toward the sensor during the part of the shutter cycle when film is not being exposed. Independent motors drive the film movement and shutter, with firmware tasked to keep the mechanical and digital systems in tight sync. According to CineD, the current SIXTEEN is a “semi-working prototype” with major mechanical elements functioning but firmware still under active development. The digital side uses a Sony Four Thirds sensor windowed down to Super 16 size, delivering 3K footage at up to 120 frames per second for editorial, dailies, and backup.
Eliminating Classic Super 16 Pain Points for Indie Productions
Traditional Super 16 shoots come with three major headaches: limited magazine length, a wait for processing and scanning, and concerns about long‑term archival security. The Cinelux SIXTEEN’s simultaneous capture model tackles each one. While the film negative remains the creative master, productions walk away from set with ready‑to‑edit digital files, avoiding downtime while labs process and scan. The camera accepts both 400‑ and 1,000‑foot magazines, but the parallel digital recording means that even if a mag scratches or a reel is delayed, there is a usable digital counterpart tied to the same takes. Cinelux says that adding “a true digital cinema output alongside a film deliverable” means “shooting film no longer impedes the momentum of production requirements.” For independent filmmaking teams balancing tight schedules and modest resources, that can make film a practical option again rather than a risky indulgence.
Film Look, Digital Workflow: Color Science and On‑Set Practicality
To ensure the digital file reflects what will emerge from the film lab, Cinelux is developing live film emulation for monitoring and recording. The aim is for the digital feed to mimic how specific film stocks handle clipped highlights, tricky shadows, dynamic range, and color, so cinematographers can rely on it as an exposure and creative reference. Cinelux says its color science and processing are being built with input from colorists and cinematographers to deliver an “as‑true‑as‑possible” view of the final film image. On the hardware side, the camera is planned to include SDI and USB ports, wireless connectivity, an optional electronic viewfinder, timecode genlock sync, and sound syncing with a built‑in microphone. Together, these features position the SIXTEEN as a set‑ready tool that slots into existing digital workflows while preserving a film‑centric shooting experience.
A Prototype Pointing to Format‑Agnostic Independent Filmmaking
The Cinelux SIXTEEN remains a prototype, with firmware and full‑system reliability still in development, but its presence at industry shows signals a growing appetite for format‑agnostic capture. Founder Cole Cyccone and a small engineering team have spent more than two years progressing from an early, unannounced proof‑of‑concept to the current semi‑working body, with a release target that indicates a long‑term commitment to bringing new film cameras to market. Cinelux notes that the camera should cost “less than a used Arriflex 416,” a body that can range between USD 65,000 and 90,000 (approx. RM299,000–414,000) depending on configuration, hinting at a relatively more accessible path into Super 16 for independent filmmaking. If the final product delivers on its promise of reliable simultaneous capture, the SIXTEEN could mark a shift where picking film no longer means sacrificing digital speed and safety.
