Steam Machine: A Console-Style PC That Refuses to Be Sealed
The Steam Machine is a compact desktop-style gaming system designed for the living room that combines console-like convenience with a PC’s upgradeable, user-serviceable hardware, allowing owners to access and replace key components such as RAM and SSD without complex tools or destructive disassembly.

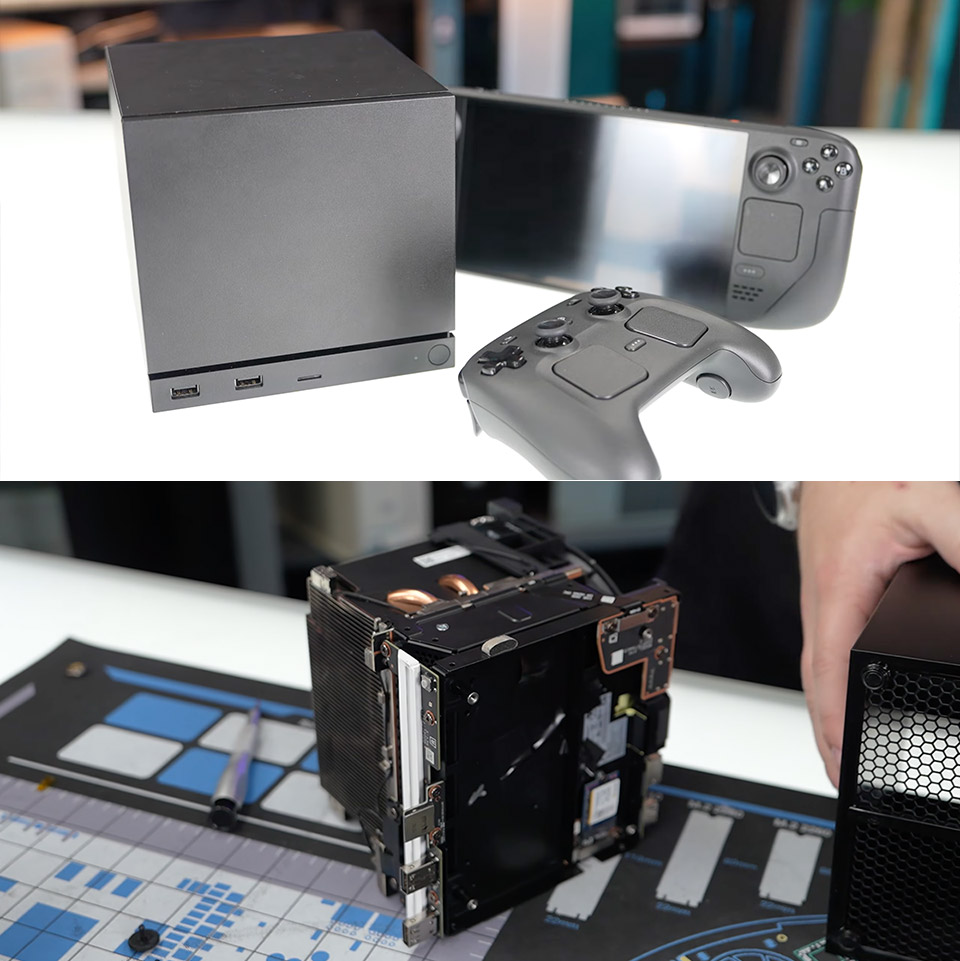

Valve released this SteamOS box as a small black cube aimed at couch gamers, but the design philosophy is closer to a friendly PC than a locked-down console. Even before units reached buyers, a teardown from a hardware channel pulled one apart on camera and exposed an internal layout that feels almost like an engineering rebuttal to glued shells and hidden clips. Opening the chassis starts with visible nuts and a hinged front section; there are no fragile tabs or adhesive walls waiting to punish curiosity. If you think “compact gaming PC repair” usually means heat guns and warranty stickers, this machine argues otherwise. The key takeaway: Valve decided that a living room box can be small and stylish without treating the owner like a trespasser.
Minimal Tools, Maximum Access: Repairability as a Design Goal

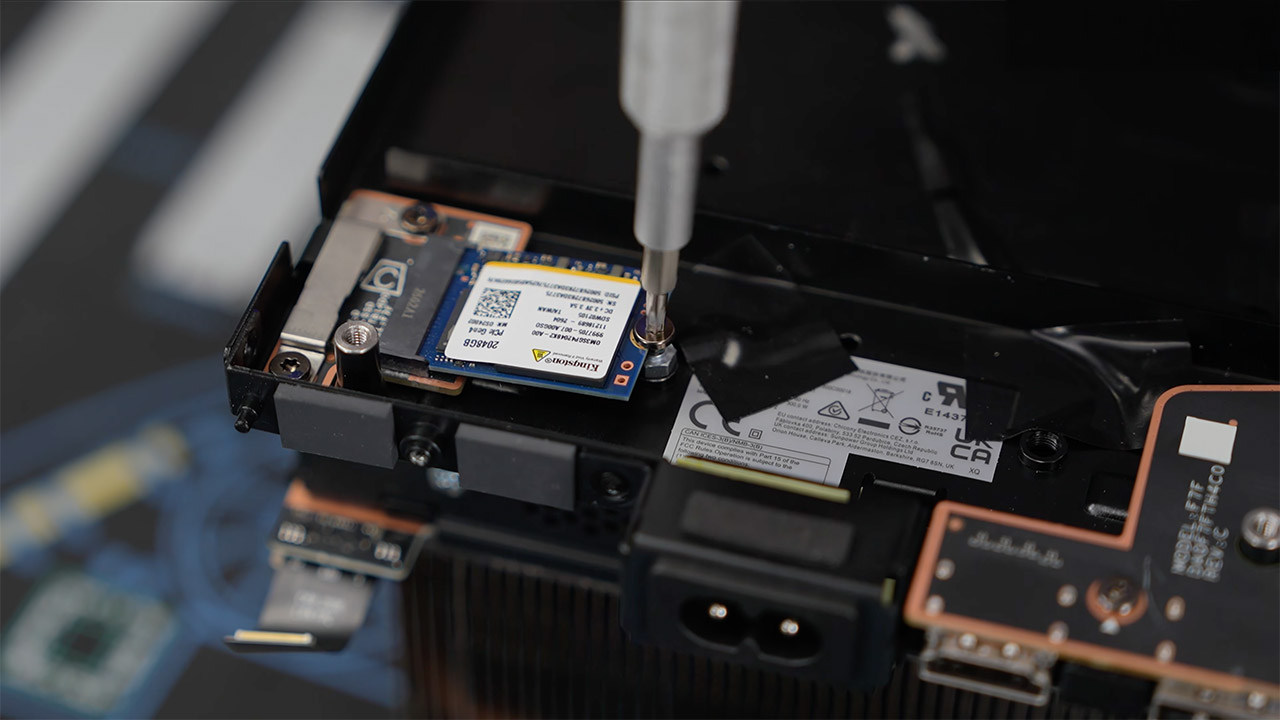

Where most compact systems hide behind plastic and glue, Steam Machine leans into clear, documented access. Once the shell is off, the SSD sits in plain view, held by captive Torx screws and free of delicate tabs or prying-tool rituals. Feet are screwed through rubber instead of stuck on, so replacing them does not shred the case. Inside, QR codes, arrows, revision labels and color-coded fasteners turn the interior into a guided RAM and SSD upgrade guide rather than a booby trap. According to one teardown, “when it comes to critical components, the computer is easier to repair than most major game consoles, including the PlayStation 5.” That is the opposite of the sealed-console mindset, where every screw feels like a crime. Here, the message is blunt: open it, learn it, fix it.
This approach directly serves ordinary users. Easier access means lower risk of breaking clips, faster SSD swaps, and a cleaner path to future RAM upgrades. It also makes compact gaming PC repair less of a specialist job and more of a weekend project.
Miniaturized, Not Locked Down: How the Layout Enables Upgrades

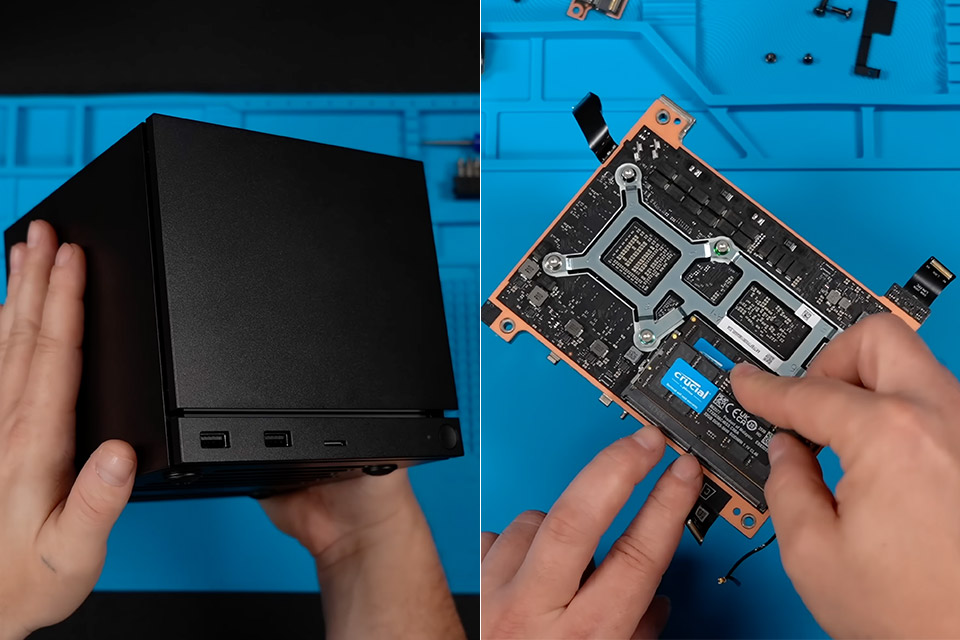

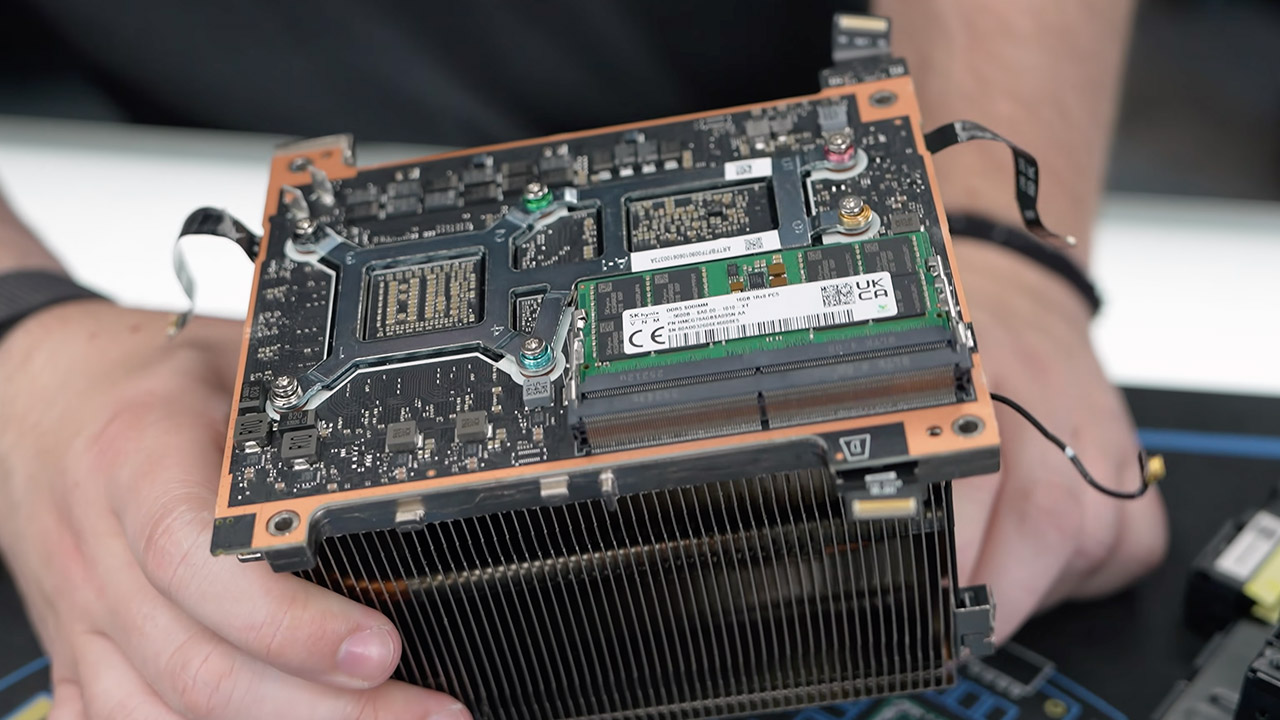

Steam Machine’s mainboard is tiny, comparable to Pico-ITX and much smaller than standard Mini-ITX boards, yet it still reserves space for upgrades. An AMD CPU sits on one end, a graphics chip on the other, with four 2 GB VRAM modules clustered around the GPU and a shared backplate for protection. On the reverse, a single 16 GB DDR5-5600 SODIMM occupies one slot while the second slot is deliberately left free for future memory expansion. That stock single-channel setup is a design trade-off, not a dead end: start simple, then scale. Cooling is handled by a seven-blade fan, a tall fin stack with wide spacing, and thick heat pipes tied together with thermal putty rather than rigid pads, so temperatures stay under control despite the cramped footprint. Some port sections appear modular, signaling that even damaged connectors could be swapped instead of sending the whole box to landfill.
Access to memory is practical: the installed stick is normally reachable without tearing off the entire heatsink, and storage swaps become almost trivial once the outer shell lifts away. The result is a compact gaming PC that does not treat miniaturization as an excuse to lock users out, but as a puzzle in how far modular design can stretch inside a living room cube.
Real-World Mod: From 16GB to 64GB RAM and 4TB SSD
Design intent means nothing if nobody can exploit it, and a popular hardware YouTuber set out to prove the Steam Machine upgradeable story in practice. Buying the 2 TB configuration, they opened the case, slid out the internal assembly, removed the heatsink with four screws, and reached the memory after detaching antenna cables and small port boards. One DDR5 stick was installed in single-channel mode; it was replaced with a matched pair of 32 GB modules, instantly enabling dual-channel operation and taking the system to 64 GB, with about 62 GB usable. In parallel, they lifted a side panel, exposed the SSD bay, and swapped the original 2230 drive and adapter for a 4 TB 2280 Kingston Fury Renegade without cutting or drilling because the chassis already had enough room. The OS was cloned externally, so the machine booted back into SteamOS with no warnings and immediately reported the higher RAM and storage.
Gameplay remained smooth, with only slight frame rate bumps because the GPU still has 8 GB of VRAM, but dual-channel memory and extra SSD space made multitasking easier and allowed far more games to live on internal storage. The hardware needed is expensive—the memory kit costs around USD 820 (approx. RM3,900) and the 4 TB SSD nearly USD 1,000 (approx. RM4,800), bringing the full setup to about USD 3,247 (approx. RM15,500) when you count the base system—but the point stands: this box is a user-serviceable hardware platform, not a disposable gadget.
Why This Design Philosophy Matters for Future Living Room PCs
The Steam Machine is a quiet rebuke to sealed console design. It proves that a compact, couch-friendly system can provide straightforward RAM and SSD upgrade paths without sacrificing thermals or aesthetics. The single-channel DDR5 default is not a limitation but a baseline that invites owners to add a second stick when they need more bandwidth. Labeling, QR-coded guidance and minimal-tool access lower the barrier to compact gaming PC repair for ordinary players, not only hobbyist modders. In everyday use, that means easier fixes, cheaper lifetime ownership, and the confidence that your living room machine will not be obsolete the moment a bigger game library or heavier multitasking lands on it.
If console-style boxes remain glued shut while this one welcomes screwdrivers, it will not just be a technical difference but a philosophical one. Valve is betting that giving owners permission—and clear routes—to service their hardware is a long-term advantage. Anyone who cares about user-serviceable hardware should hope that bet pays off, because this is the future upgradeable consoles should be forced to compete with.
