Why Repurposed Gaming PCs Are Worth Your Time
Repurposed gaming PCs are computer systems built from salvaged hardware and discarded electronics, combined and repaired to create low-cost, functional gaming and productivity machines that cut e-waste while delivering strong performance-per-dollar compared with buying brand-new budget hardware. If you like tinkering, are comfortable around PC components, and have a bit of patience, these DIY e-waste projects can give you a capable budget gaming rig without draining your wallet. The catch is that you trade convenience for experimentation: boards may be partially defective, and getting them to boot often involves detective work with multimeters, firmware settings, and improvised cabling. According to one modder, "anything above $300 wouldn’t be worth it" for certain recycled boards, because you are not guaranteed that all GPU units work and you must do a fair bit of tinkering first. If that sounds like fun rather than a chore, this guide is for you.
Below is one ordered, practical path through three real salvaged hardware builds: a PS5-chip-based budget gaming rig, a high-end all-in-one built from smashed laptops and broken iMac parts, and compact gaming machines made from old commercial menu boards. You can tackle them separately or combine ideas, but follow the sequence if you are new: start with the most documented project, then move on to more experimental builds.
- Scavenge and buy the core salvaged hardware for each build: the BC-250 PS5-derived board, a high-end laptop motherboard, a broken iMac display, and discarded media-player boxes from retail or fast-food menu boards.
- Verify that each salvaged component powers on and stays cool: mount heatsinks and fans, probe connectors with a multimeter to find standby voltage, and confirm video output from available ports such as USB-C or HDMI before committing to full assembly.
- Build the PS5-chip budget gaming rig first: pair the BC-250 board with a basic case, PSU, cooling, and storage; install Linux; then apply the available kernel module parameter to unlock up to 40 GPU compute units, testing stability and frame rates at 1080p.
- Assemble the all-in-one salvaged hardware build: prepare the broken iMac panel by heating and carefully separating the bonded glass layers, clean the LCD, fabricate a wooden and metal enclosure, mount the laptop motherboard with standoffs, and wire up a custom power-on ribbon cable and basic I/O.
- Convert the commercial menu-board media players into gaming machines: upgrade RAM where possible, install an operating system such as Windows 10 or a gaming-focused Linux distribution, and test lightweight games and older console titles to confirm the machines’ limits.
- Refine each system: tidy cable runs, add vents and small fans if temperatures rise, and tune software settings—graphics presets, frame-rate caps, controller support—so each repurposed gaming PC feels like a coherent, reliable machine instead of a pile of parts.
This sequence keeps you from getting stuck on the most fragile parts first. Starting with the BC-250 build gives you a clear path to a working budget gaming rig, while the all-in-one and menu-board projects show how far you can push salvaged hardware once you are comfortable with testing and basic fabrication. The main gotcha throughout is invisible damage: always assume a salvaged part might be partially defective, and never power it on without cooling attached.

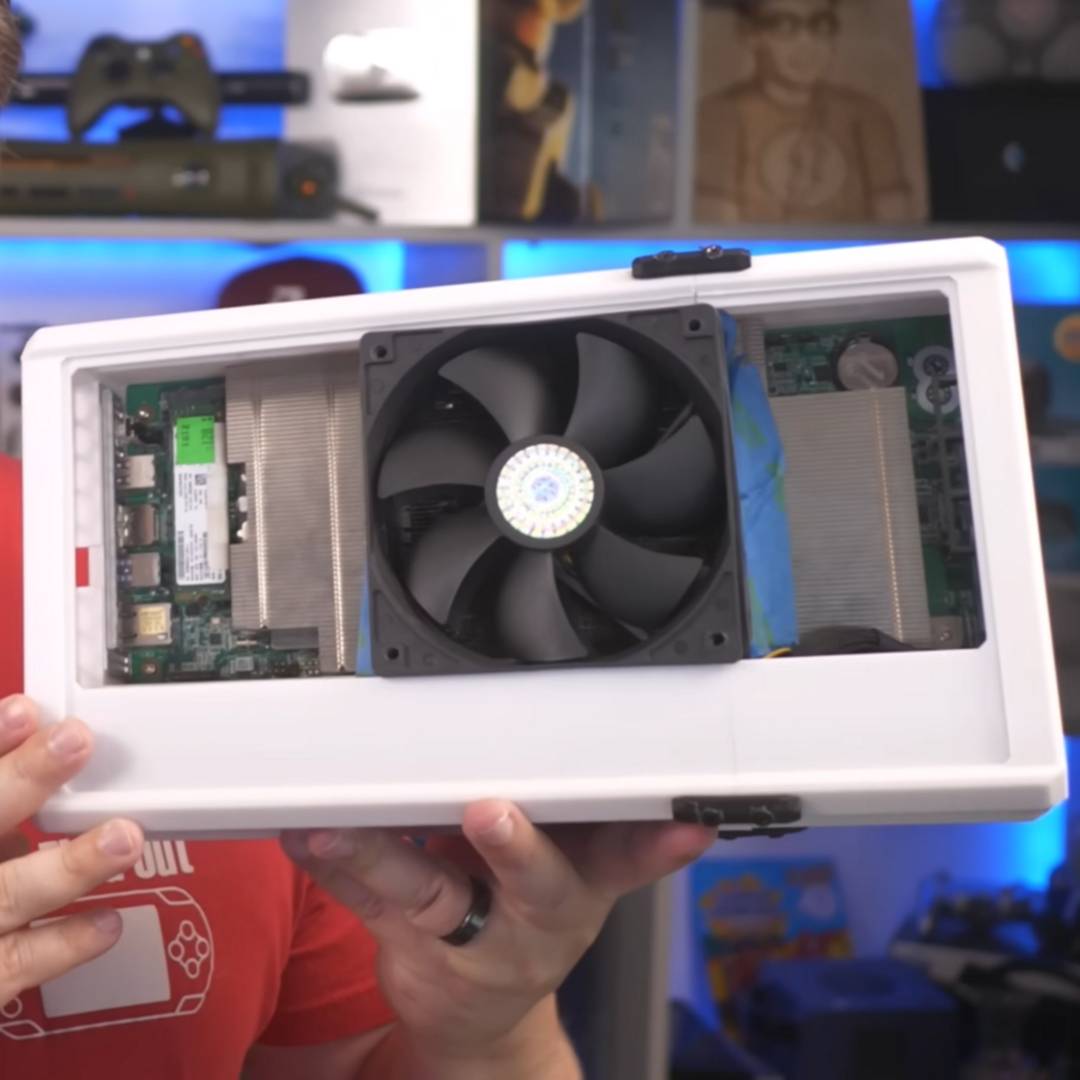

Project 1: PS5 Chip Mods for a Budget 1080p Gaming Rig
The first project turns a board based on a defective PlayStation 5 chip, known as the AMD BC-250, into a repurposed gaming PC that behaves like a DIY alternative to a compact Steam Machine. These boards were originally made for crypto miners, combining leftover PS5 chips that did not meet console requirements with 16GB of GDDR6 memory on a compact motherboard designed to fit densely in server racks. Out of the box, the APU is cut down to six active Zen 2 cores and 24 RDNA 2 compute units, even though it physically carries eight cores and 40 compute units, which means there is unused potential locked away. A recent Linux patch changed that by allowing all 40 GPU compute units to be enabled through a kernel module parameter, without any firmware modification, so long as the silicon has 40 working units.
To build your budget gaming rig, you first source the BC-250 board, ideally as part of a refurb kit that includes cooling, case, PSU, and storage, which has been shown to total around USD 250 (approx. RM1,150) for a complete system. You then install a compatible Linux distribution and apply the unlocking tool, adding the necessary kernel parameter to enable all available GPU compute units. With six CPU cores set to 4.1GHz and the unlocked GPU at 2.2GHz, testing across modern titles shows performance exceeding 60fps at 1080p when you are willing to lower some settings, with average frame rates above 70fps and 1% lows in the 40–50fps range. The main caveat is risk: not every chip has 40 healthy units, and the modder who documented this build warns that anything above USD 300 (approx. RM1,380) would not be worth it given the uncertainty and the tinkering required.
As long as you stay within that budget guidance and accept a bit of trial and error, this salvaged hardware build delivers a capable budget gaming rig that can handle modern titles at 1080p with reasonable frame rates. The weak point is the older, cut-down CPU, which can bottleneck the GPU and hold back high-end settings or very CPU-heavy games, but for the price and power draw, the performance-per-dollar is hard to match with brand-new low-end desktop parts. Think of this project as your gateway into DIY e-waste projects: it is more documented, relies on software-level unlocking rather than soldering, and shows how recycled console silicon can compete with contemporary entry-level gaming PCs.

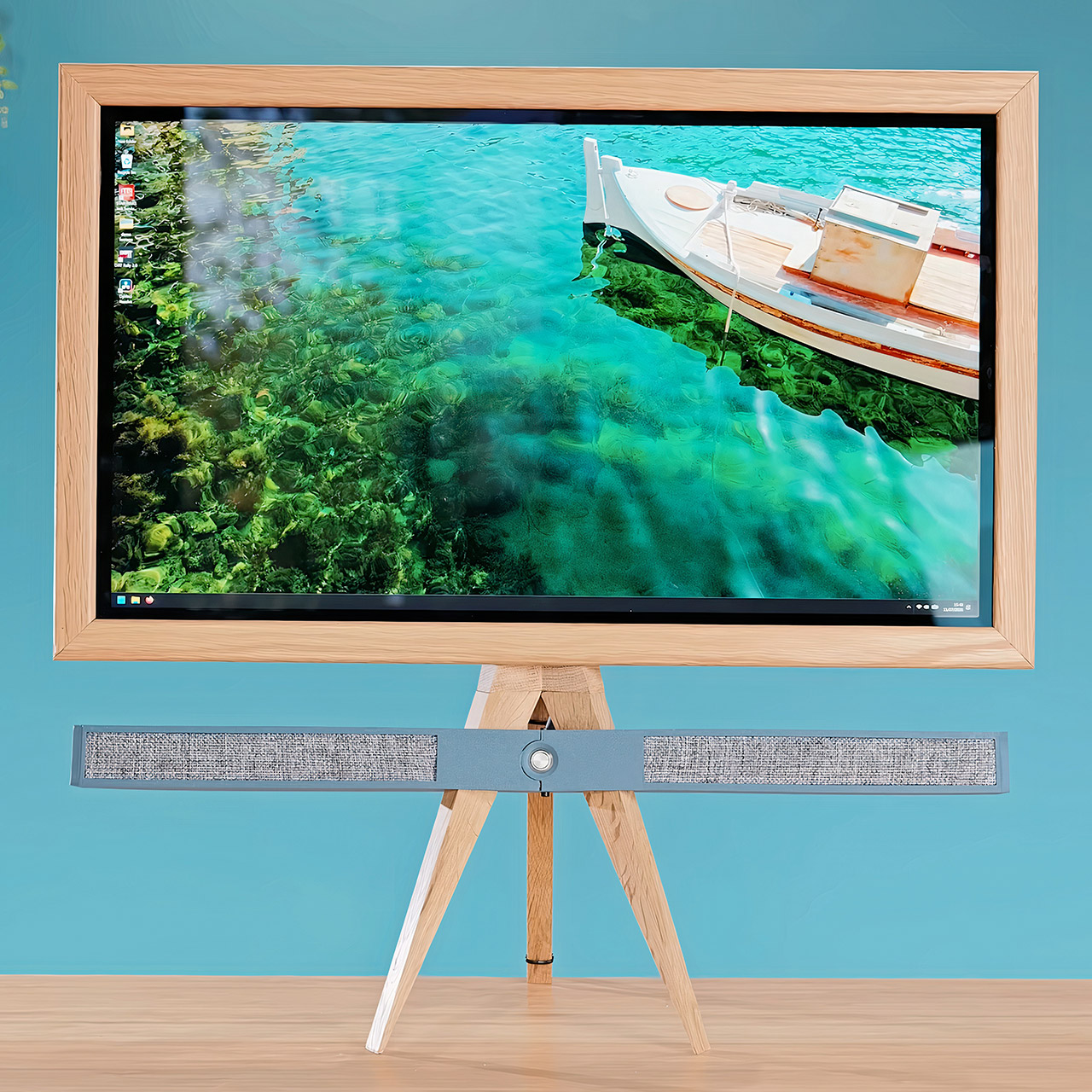

Project 2: Salvaged Laptop Boards and Broken iMacs as All-in-One PCs
The second project takes piles of discarded laptops and smashed iMacs and turns them into a single, polished all-in-one repurposed gaming PC and creative workstation. Repair shops often strip high-end laptop motherboards from machines with cracked shells or destroyed keyboards, leaving powerful processors, dedicated graphics, and substantial memory fully intact yet undervalued. In one build, the salvager picked up a laptop board with an AMD processor including AI features, an NVIDIA RTX GPU, and 32GB of DDR5 memory already soldered in—at a price lower than what a simple desktop RAM kit usually costs. That kind of board is ideal for a quiet, slim all-in-one because everything is integrated: CPU, GPU, memory, storage, Wi-Fi, and often a USB hub and card reader, all in a single compact assembly.
Bringing such a board to life without its original keyboard requires some careful probing. With a multimeter, you examine the keyboard connector pins until you find the standby voltage line, which typically sits at 3.3 volts. Bridging that pin to ground with a short piece of wire activates the power mechanism; the fan spins up and the board starts to warm, indicating it still has life—a result confirmed only after ensuring a heatsink and fan were mounted to prevent damage. Video output can come from the USB-C connector, which you verify by checking chipset specifications while browsing the web over a test connection. For the display, you look for a broken iMac with a smashed glass front at local recycling centers; many people give such machines away, yet the underlying LCD is often flawless.
Restoring the iMac panel means separating its bonded glass layers with patience: heating the front to soften adhesive, then slowly working a fine wire between layers while avoiding stress that could crack the LCD, followed by a wipe-down with alcohol to restore the surface. Once clean, that panel offers over 4K resolution, a wide color gamut, and impressive brightness—perfect for creative work and high-resolution gaming. A frame built from hardwood offcuts forms a modest wooden edge, finished with colored oil for warmth, while the rear gets wrapped in vinyl and covered with an aluminum sheet for a clean look and structural mounting. The laptop motherboard mounts to the metal using standard PCB standoffs, with extra holes drilled for airflow and cable routing; a handmade ribbon cable of paper, copper foil tape, and a ground wire connects a tactile switch that controls power-on. In the completed salvaged hardware build, the RTX chip delivers clear 4K images and handles video editing and AI upscaling without complaint, all at roughly a third the cost of comparable new parts.
Project 3: Turning Old Menu Boards into Compact Gaming Machines
The third project shows how old commercial menu boards and retail hardware can become capable gaming machines with a bit of curiosity and configuration. One salvager visited a sandwich shop during an upgrade and asked for the outgoing digital menu boards, walking away with three slim Advantec DS081 media players and four commercial displays that were headed for the trash. These boxes spent years running continuously in a restaurant, which means they are built for reliability even if they are not high-end on paper. Inside each media player sits a sixth-generation Intel Core i3-6100U processor clocked at 2.3GHz, paired with 4GB of DDR4 RAM (expandable to 8GB), a 64GB solid-state drive, and Intel HD Graphics 520, along with familiar ports such as HDMI, USB 3.0, Ethernet, and a micro PCIe slot. That specification is modest but serviceable for a budget gaming rig aimed at older or lighter titles.
Reviving these machines starts with a RAM upgrade, sliding in an 8GB stick where possible to improve multitasking and game performance. Next, you install an operating system: one unit took Windows 10, booting quickly to a standard desktop instead of the restaurant interface, while another accepted macOS and was even identified by the system as a 2016 MacBook Pro, though without proper graphics acceleration. The third media player received Bazzite, a Linux distribution built specifically to help run games on older hardware, after SteamOS proved difficult due to an incompatible storage interface. With Bazzite installed, games like Peggle ran perfectly and Minecraft was playable, proving that these recycled menu-board machines can handle casual PC gaming.
The compact size and low power draw of these converted media players makes them well suited for titles that do not demand a lot of processing power, including older console games from platforms such as PS2 and the original Xbox. Paired with the salvaged commercial displays, they become quiet living-room boxes or small desktop systems for emulation and indie games. From an e-waste perspective, this DIY e-waste project rescues hardware that would otherwise be scrapped, turns it into a repurposed gaming PC cluster, and avoids the cost of new mini PCs by reusing boards that already have SSDs and networking built in. There is no guarantee every media player you find will be as cooperative, but the combination of standard PC components and open operating systems means you can reuse a surprising amount of commercial signage hardware.
Takeaway: Performance-per-Dollar and E-Waste Wins
Across all three projects, a pattern appears: DIY hardware recovery can cut costs dramatically while delivering solid performance-per-dollar compared with buying new budget parts. The BC-250 PS5-derived board, when unlocked, offers 1080p gaming with frame rates that would usually require a more expensive GPU, yet the complete build has been shown around USD 250 (approx. RM1,150). The salvaged all-in-one built from a high-end laptop motherboard and a broken iMac panel ends up costing about a third of equivalent new hardware, yet handles 4K output, video editing, and AI upscaling without strain. The converted menu-board machines, while modest, run light PC games and older console titles well, using hardware that was literally on its way to a trash pile.
If you follow the step sequence—source the right scrap, verify each component, build the PS5-chip rig first, then move on to intricate salvaged hardware builds—the process is manageable even without formal training. The trade-offs are clear: you must accept risk, spend time testing, and live with some quirks, like odd power buttons or limited upgrade paths. In return, you reduce e-waste, gain unique machines, and learn skills that make every future budget gaming rig cheaper and more personal. Watch for overheating, always mount cooling before powering salvaged boards, and treat experimental OS installs as part of the fun instead of a guarantee. For tinkerers, turning discarded hardware into gaming machines is not only worth it—it is one of the most satisfying ways to build a PC.
