What a DIY Steam Machine Is and Why You Might Want One
A DIY Steam Machine is a custom-built gaming PC designed for living-room use that runs Valve’s SteamOS 3.8 operating system, using console-style menus and controller-focused navigation to offer a couch-friendly way to play your Steam library while giving you full control over hardware choices, case design, and future upgrades. This guide is for PC gamers who like the idea of a console under the TV but still want PC flexibility. The catch: right now you can build a Steam Machine only if you use an AMD Radeon GPU, because SteamOS 3.8 is tuned around AMD architecture and drivers. Nvidia support is in active development through official collaboration, but it is not ready for everyday builds yet. If you’re comfortable installing an operating system and don’t need dual-boot on the same drive, you’re exactly the target audience.
Plan Your Build: Parts, Cases, and Real-World Limits

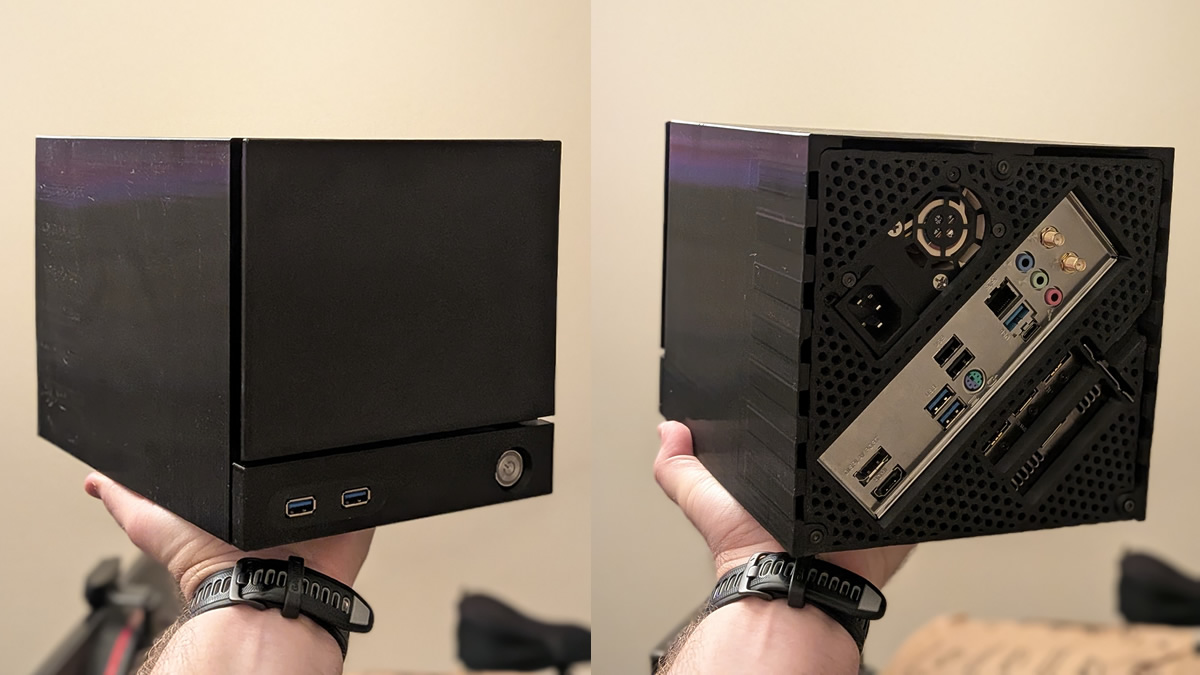

Before you rush into SteamOS 3.8 installation, treat this like any other DIY gaming PC: plan your parts around the software. SteamOS 3.8 now lets desktop users install the Linux-based OS on many custom-built PCs, including systems with Intel CPUs, while keeping AMD Radeon graphics as the recommended option for gaming today. That means your build Steam Machine project should centre on a Ryzen or other compatible CPU, plus a Radeon GPU, to match what powers Valve’s own hardware. Case-wise, you can go with a regular Mini-ITX chassis or explore the 3D-printable Mini-ITX Steam case that supports mini-ITX motherboards, low-profile graphics cards, and a Flex ATX PSU. This 3D-printed option sits close to Valve’s cube-like form factor and shows that cheaper alternatives to the official system, which starts at over USD 1,000 (approx. RM4,600), are practical if you’re willing to pick unusual parts.
The main limitation to be aware of is GPU choice for that Mini-ITX Steam case. It currently favours low-profile cards, and there are no low-profile or half-height Radeon RX 9000 series GPUs available. If you follow that path, you’ll likely be on earlier or smaller Radeon models. Also remember that Flex ATX power supplies, like the 400W unit used in one community build, cap how far you can push CPU and GPU power and may require careful attention to airflow. If that all sounds like more compromise than you want, a more conventional ITX case with standard ATX or SFX power supplies will make it easier to match or beat Valve’s official Steam Machine performance at lower cost, using familiar components and cooling layouts.
Step-by-Step: From Bare PC to Couch-Ready SteamOS 3.8
The actual SteamOS 3.8 installation is not as polished as Windows yet, but it is far from experimental. Valve has openly provided SteamOS to the public and encourages people to run it on their own hardware. Historically you had to rely on a Steam Deck recovery image to install it, which is less straightforward than typical desktop OS installers. With 3.8, first-time setup is smoother and hardware support wider, especially for AMD GPUs and Intel CPUs. The trade-off is that dual-boot on the same drive is not recommended in SteamOS’ current state, so plan on a dedicated drive for this project. Think of it as building a small, single-purpose console PC that boots straight into Steam. Once you’ve accepted that caveat, the process is quite simple and geared toward living-room gaming on a TV with a controller.
- Assemble your DIY gaming PC with an AMD Radeon GPU, compatible CPU (AMD or Intel), and a single dedicated drive you will use only for SteamOS, avoiding any dual-boot setup.
- Connect the PC to your TV or monitor via HDMI, plug in a controller or keyboard and mouse, and verify that all components power on correctly before touching software.
- Download the latest SteamOS 3.8 image that is currently distributed as a Steam Deck recovery image, and write it to a USB drive using a standard image flashing tool.
- Boot your PC from the USB drive, follow the SteamOS first-time setup prompts, and let the installer configure drivers and the console-like interface tailored for desktop and couch setups.
- Once SteamOS loads, sign into your Steam account, connect to your TV in the way you plan to use daily, and explore the console-style menus to confirm controller support and general performance.
The main gotcha in this sequence is that HDMI-CEC, the feature that lets one remote control multiple HDMI devices, is missing, so you won’t be able to turn on your TV and Steam Machine with a single remote command. Also, future Nvidia support will not be instant; according to Valve’s Pierre-Loup Griffais, the company is collaborating closely with Nvidia on GeForce drivers, but full support may take time. For now, sticking to AMD GPU SteamOS builds keeps things simple and aligns with the open-source drivers integrated into the Linux kernel and Mesa. Once installed, SteamOS should offer a good experience on console-like PC setups using a controller with your TV, very similar to a Steam Deck docked or Valve’s own Steam Machine, with those caveats in mind.
Upgrades, Performance, and Why DIY Beats the Official Box
If you like tinkering, this is where DIY Steam Machines shine. Community teardowns of Valve’s compact system show a dense but serviceable layout that still leaves room for upgrades. Its board packs CPU and GPU on a tiny footprint, with a single 16GB DDR5 SODIMM and a second slot left open for future memory expansion. Modders have already taken advantage of that by replacing the original module with a matched pair of 32GB sticks for a total of 64GB RAM, immediately enabling dual-channel operation. Storage access is also straightforward: one panel reveals the drive area, and there was enough space to swap the small OEM 2230 SSD for a full-size 2280 drive, with one builder installing a 4TB Kingston Fury Renegade for faster read and write speeds. The system then booted into SteamOS without warnings, correctly reporting the new memory and storage capacity.
Those upgrades prove that a Steam Machine-style layout can be both compact and easy to service, but you are not limited to Valve’s exact design when you build your own. A standard Mini-ITX board gives you multiple RAM slots, M.2 connectors, and cleaner airflow options than the ultra-miniaturised layout used in Valve’s cube. With SteamOS 3.8 supporting AMD GPUs and improving video memory management, builders can now create systems stronger than Valve’s official Steam Machine using spare parts or hand-picked components. Community Mini-ITX Steam case projects, including 3D-printed faux-Steam Machines, show that you can reach similar aesthetics while still configuring a more powerful CPU and GPU than Valve’s stock unit, as long as you respect power and cooling limits. In practice, a well-planned DIY build Steam Machine can outpace the official hardware while costing less than the USD 1,428 (approx. RM6,580) top configuration with controller.
Is Building Your Own Steam Machine Worth It?
If you enjoy building PCs and want a console-like experience on your TV, a DIY Steam Machine with SteamOS 3.8 is worth the effort. You get the same couch-friendly interface as Valve’s hardware and a good experience on console-style setups, while choosing your own case, cooling, and future upgrade path. The main things to watch for are the current AMD-only GPU requirement, the lack of HDMI-CEC plug-and-play convenience, and the need to avoid dual-boot on the same drive. As long as you accept those constraints and give SteamOS its own dedicated disk, you can turn a DIY gaming PC into a personalised Steam Machine that is cheaper to build, easier to service, and potentially more powerful than the official system.
